Dice Tower Template + Cut File

{{designer.properties.name}} >

Templates and cut files for creating a chipboard dice tower with tray using custom large punchouts.


Preview

Description

Create your own customized dice tower with these custom large punchout templates.

Template Details

  • Black Solid Line: Edge line.
    • The edge of the template for a single component.
  • Red Solid Line: Trim line.
    • The actual cut line.
  • Blue Dashed Line: Safe zone.
    • Do not place any important text/images beyond this line as they have the potential to be trimmed due to drift.
  • Light Grey Background: Bleed zone.
    • Extend any artwork/color to the edge line (covering the light grey) to ensure that your design covers the entire punchout if there is drift.
  • Dark Grey Background: Unused zone.
    • This part of the template is more than 1/8" away from any cut lines and doesn't require any artwork (but you may still extend your artwork into these parts).

Cut File Details

File Cut Length Cut Cost
DiceTower_CutPath_Slug1.svg 133.42" $1.13
DiceTower_CutPath_Slug2.svg 178.14" $1.51

Instructions

Use DiceTower_Template_Slug1_Face.png to design the dice tower walls and small shelves.

Use DiceTower_Template_Slug2_Face.png to design the dice tower top, base, and large shelf, and all the tray components.

  • Use DiceTower_Template_Slug1_Back.png and DiceTower_Template_Slug2_Back.png when creating the respective backs of the above components.

Finally, upload your designs along with DiceTower_CutPath_Slug1.svg and DiceTower_CutPath_Slug2.svg (found in DiceTower_CutPaths.zip), and proof to make sure everything lines up correctly.

Assembly

See the Assembly Details.pdf file for instructions on how to assemble the dice tower and tray once you receive your order.

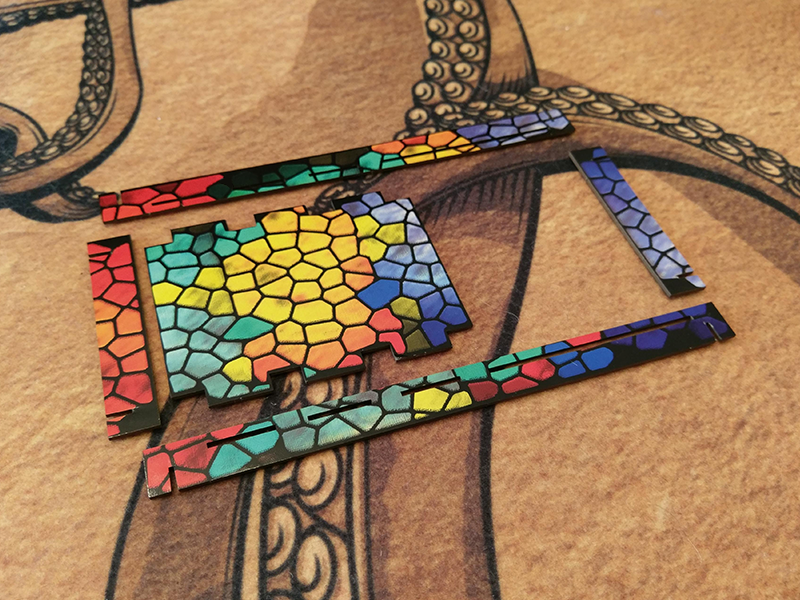

The artwork for the stained glass dice tower shown in the previews is not included. The stained glass dice tower is available for purchase here.
